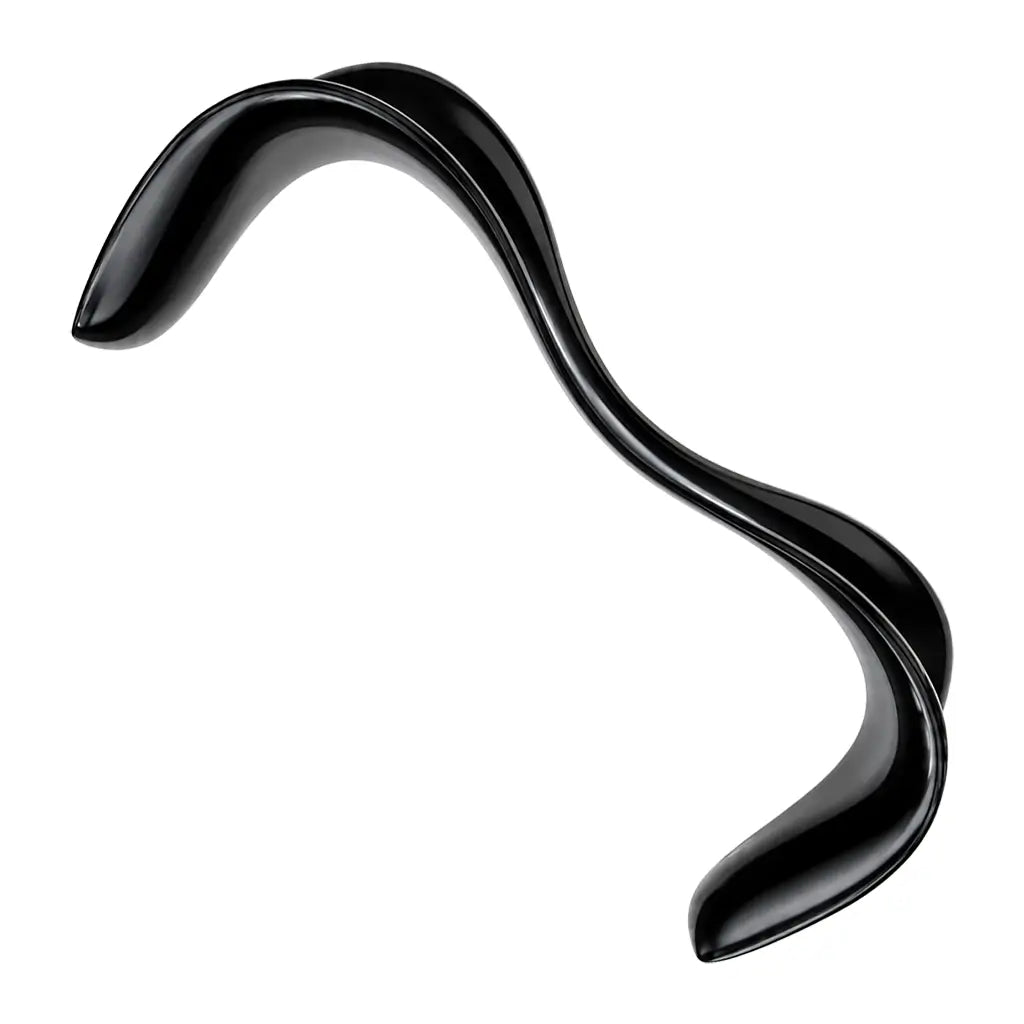

Sims Ebonized Vaginal Retractor
Description
Sims Ebonized Vaginal Retractor Overview:
The Sims Ebonized Vaginal Retractor is a specialized, double-ended gynecological instrument designed for optimal anterior and posterior vaginal wall retraction during CO2 laser ablation, LEEP/LLETZ electrosurgery, and operative colposcopy. Forged from medical-grade German stainless steel, it features an advanced matte black ebonized finish (PVD/TiN coating) that absorbs stray laser energy—reducing beam reflection to under $0.1 % while eliminating optical flare under intense colposcopic illumination. Engineered with two different-sized curved, trough-like blades on either end, it provides precise manual elevation and access to the vaginal vault and cervical os without obscuring the surgical pathway. Subjected to rigorous passivation treatments, the instrument offers exceptional corrosion resistance and withstands repeated high-temperature autoclave cycles up to 134° without flaking or surface degradation. Fully compliant with EU MDR (2017/745) standards and certified under ISO 13485:2016 quality systems, it delivers a durable, glare-free, and high-precision solution for operative gynecology.
Key Features:
-
Laser-Safe Ebonized Finish: Specialized matte black PVD/TiN coating absorbs stray CO2 laser radiation and eliminates optical reflection under colposcopic light.
-
Double-Ended Dual-Blade Design: Features two distinct blade sizes on a single handle, offering versatile tissue retraction options for varying patient anatomies.
-
Slightly Curved Trough Geometry: Smoothly rounded, trough-shaped blades gently displace the vaginal wall to maximize exposure while protecting sensitive mucosal lining.
-
Ergonomic Center Handle: Designed with a comfortable, non-slip central gripping surface for precise manual leverage and reduced fatigue during extended procedures.
-
German Medical-Grade Steel: Forged from high-tensile German stainless steel to deliver superior structural strength and maintain tip alignment under heavy manual traction.
-
Advanced Passivation & Corrosion Defense: Subjected to deep passivation processes to eliminate surface impurities, prevent oxidation, and resist chemical staining.
-
Autoclavable & EU MDR Compliant: Fully reusable and engineered to endure repeated high-temperature autoclave sterilization cycles without coating degradation, in full compliance with EU MDR (2017/745) standards.
-
Lifetime Warranty: Backed by a comprehensive lifetime guarantee covering defects in materials, manufacturing, and structural workmanship.
Applications & Uses:
-
CO2 Laser Vaporization & Ablation: Absorbing reflected laser energy to prevent accidental thermal tissue damage during laser-assisted gynecological procedures.
-
LEEP / LLETZ & Electrosurgical Interventions: Providing thermal protection and a glare-free field of view while retracting vaginal walls during loop excision procedures.
-
Diagnostic Colposcopy & Operative Examinations: Depressing the posterior or anterior vaginal wall to provide unobstructed exposure of the cervical os and vaginal vault.
PRODUCT CARE
Surgical Instrument Cleaning Guide: Best Practices for Healthcare Facilities
Maintaining properly cleaned and sterilized surgical instruments is essential for patient safety and infection prevention. A well-structured reprocessing system helps healthcare facilities minimize contamination risks, improve clinical outcomes, and ensure instruments remain safe and effective for repeated use.
Below is a step-by-step guide to effective surgical instrument cleaning and sterilization.
Immediate Cleaning After Use
The cleaning process should begin immediately after a medical procedure. Delays may allow blood, tissue, and bodily fluids to dry onto instruments, making debris harder to remove and increasing the possibility of biofilm formation.
At the point of use, staff should gently wipe instruments with a sterile damp cloth or sponge. Moisture-retaining products such as enzymatic sprays, gels, or foams may be applied to prevent organic material from drying before detailed cleaning begins.
For heavily contaminated devices, soaking in an enzymatic cleaning solution can help loosen stubborn biological residue and simplify the cleaning process.
Safe Handling and Transportation
Used instruments should be transferred safely from procedure rooms to the reprocessing area using sealed, puncture-resistant containers designed to prevent leakage and accidental exposure.
Containers should be clearly identified as biohazardous to reduce contamination risks and ensure safe handling by healthcare personnel.
Thorough Manual Cleaning
Manual cleaning plays a key role in eliminating visible contamination before advanced processing methods are used.
Healthcare staff should clean instruments using soft cleaning brushes, approved detergents, and lint-free cloths. Special attention must be given to difficult-to-clean areas such as hinges, grooves, lumens, locking mechanisms, and joints where debris can accumulate.
After scrubbing, instruments should be rinsed thoroughly with purified water, such as distilled or deionized water, to remove detergent residue.
Advanced Mechanical Cleaning
Mechanical cleaning systems provide an additional level of decontamination by removing microscopic particles that manual cleaning may miss.
Equipment such as ultrasonic cleaners and automated washer-disinfectors use sound vibrations and programmed wash cycles to improve cleaning effectiveness.
To achieve proper results, instruments must be arranged correctly within the equipment to ensure complete exposure during cleaning. Staff should always follow the manufacturer’s usage instructions and routinely inspect equipment to maintain performance standards.
Effective Sterilization Methods
Sterilization is a crucial phase in the instrument reprocessing cycle because it destroys harmful microorganisms, including bacteria, spores, and other infectious contaminants.
Several sterilization options are commonly used in healthcare settings, including:
- Steam sterilization
- Gas-based sterilization using ethylene oxide
- Hydrogen peroxide plasma sterilization
- Dry heat sterilization
The most suitable method should be selected according to the type of instrument and the manufacturer’s recommended guidelines.
Residue Removal Following Sterilization
When gas sterilization methods are used, instruments should be carefully rinsed afterward with purified water to eliminate any chemical residue that could potentially affect patient safety.
Proper post-processing ensures instruments are safe for clinical use.
Proper Drying Procedures
Instruments exposed to steam or gas sterilization should be allowed sufficient time to cool or aerate before drying begins.
Complete drying is essential to preserve instrument quality and prevent moisture-related damage such as rust, corrosion, or staining. Lint-free cloths or compressed air may be used to remove remaining moisture effectively.
Instrument Lubrication
Surgical tools with hinges, joints, or movable parts require periodic lubrication to maintain smooth functionality and reduce wear over time.
Only medical-grade, water-soluble lubricants should be used, and application should always follow manufacturer recommendations to avoid buildup or damage.
Inspection and Functional Assessment
Every instrument should undergo a careful inspection before packaging and storage.
Healthcare staff should evaluate:
- Overall cleanliness
- Structural condition
- Operational performance
- Signs of wear, cracks, chips, or damage
Magnification tools may help detect defects that are not visible to the naked eye. Instruments that fail inspection should be removed and reprocessed or repaired.
Sterile Packaging Requirements
Correct packaging helps preserve sterility until instruments are needed for patient care.
Depending on the device type, facilities may use sterilization pouches, wraps, or rigid containment systems. Packages should be securely sealed to reduce contamination risks and labeled with important details such as sterilization date, contents, and tracking information.
Storage and Shelf Management
Sterile instruments should be stored in a clean, dry, and controlled environment to preserve their integrity.
Proper storage practices include:
- Keeping instruments off the floor
- Avoiding excessive moisture or direct sunlight
- Maintaining controlled room conditions
- Organizing inventory using a first-in, first-out system
This approach helps ensure older sterilized products are used before newly processed items.
Documentation and Quality Compliance
Accurate recordkeeping is an important part of surgical instrument reprocessing and regulatory compliance.
Healthcare facilities should maintain detailed documentation that includes:
- Sterilization dates and cycle information
- Processing methods used
- Equipment performance records
- Staff/operator details
- Biological monitoring and testing results
- Maintenance and validation logs
Organized documentation improves traceability, supports audits, and helps facilities meet healthcare quality standards.
Final Thoughts
A consistent and properly managed cleaning process is essential to maintaining surgical instrument performance and protecting patient safety. From point-of-use cleaning to storage and documentation, every stage contributes to infection control, regulatory compliance, and better healthcare outcomes.
