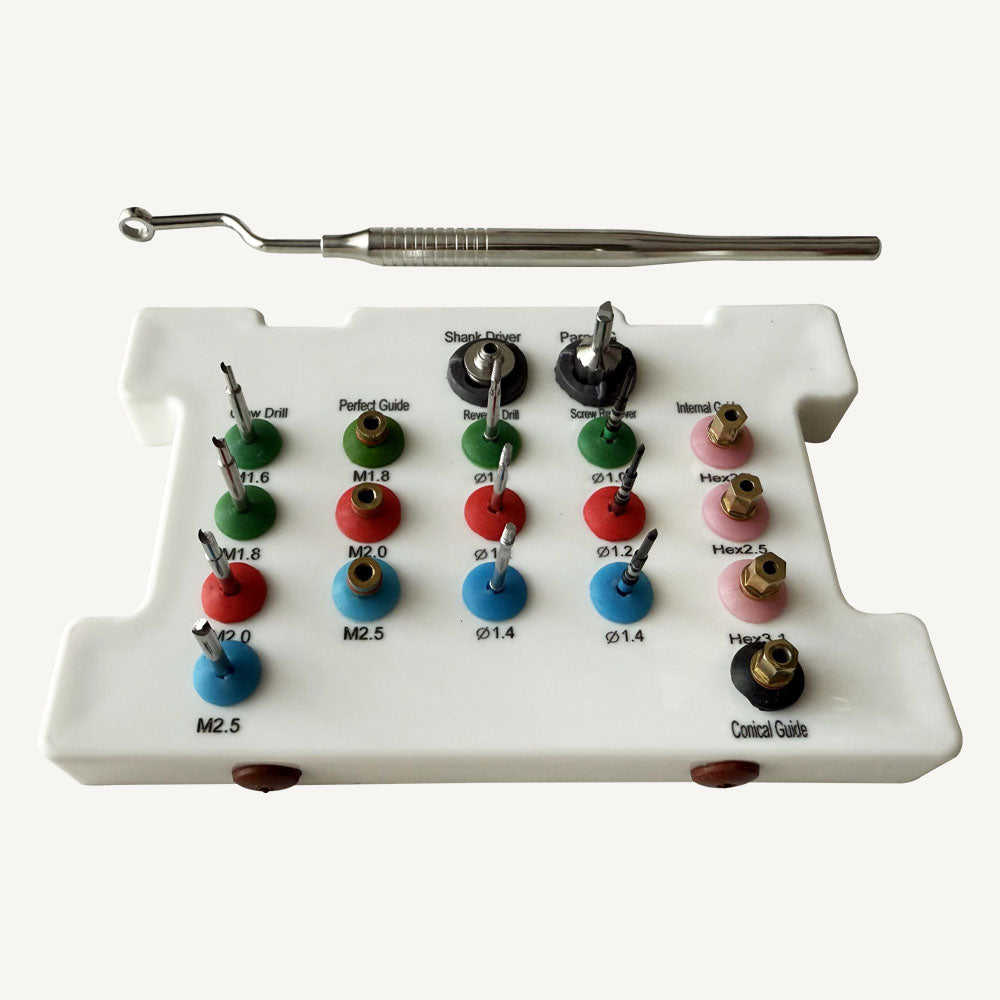

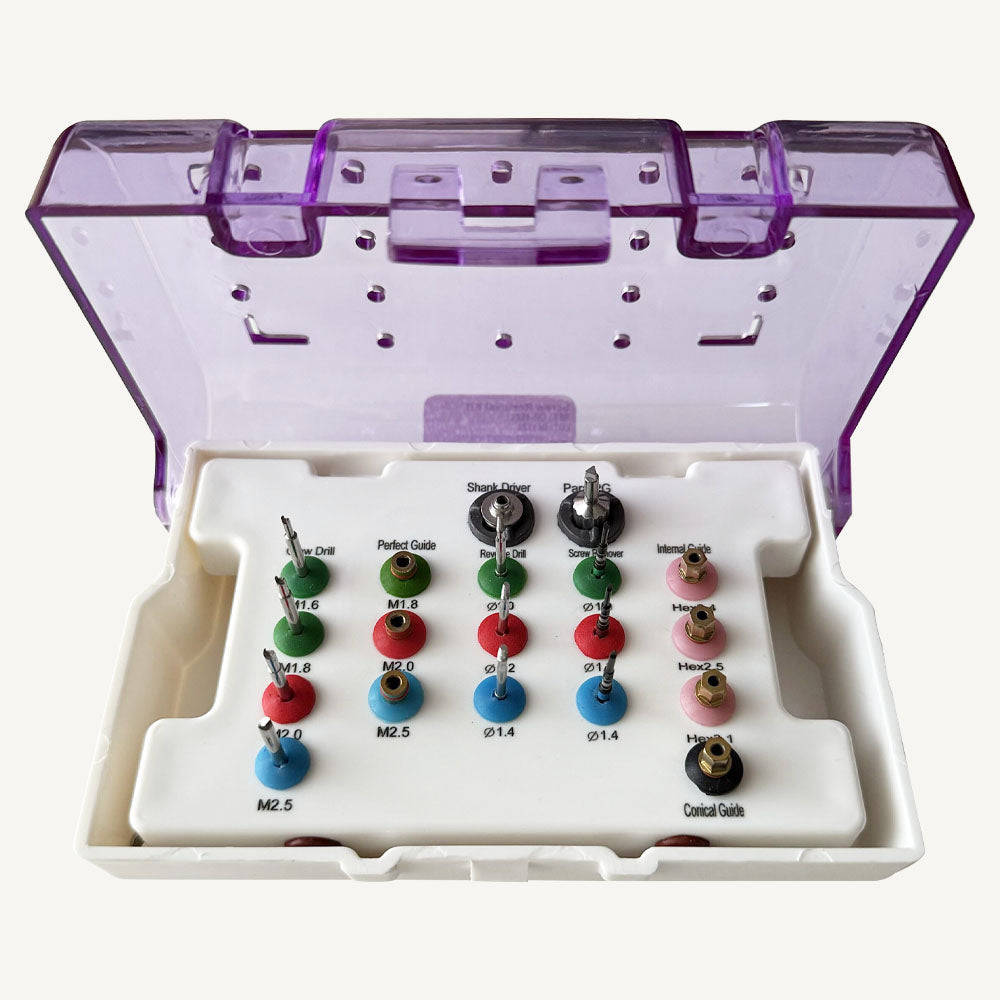

Screw Removal Kit
Description
1- Claw Drill
This surgical tool is designed to remove screws that have fractured inside a fixture.
To use, select the appropriate size based on the screw to be removed. Attach the guide (Conical, Internal, or External) to the fixture, then connect it to the shank driver. The fractured screw can then be removed by manually rotating the tool in the reverse direction.
If the fractured screw cannot be extracted with the claw drill, use the reverse drill and screw remover for removal
2- Reverse Drill
This tool is designed to create a hole on the fractured surface of a screw, enabling removal with a screw remover.
Select the appropriate reverse drill size based on the screw to be removed, and connect it to a guide compatible with the fixture (Perfect, Conical, Internal, or External Guide). The drill depth can be adjusted from 1mm to 3mm, guided by the markings on the drill body.
3- Screw Remover
This device is designed to remove fractured screws.
To use, select a screw remover that matches the size of the hole created with the reverse drill. Insert the remover and rotate it in the reverse direction at a low speed (80 rpm or less).
The screw remover features a tapered design that increases friction as it rotates, providing the necessary grip to loosen and extract the screw effectively.
4- Shank Driver
This surgical tool is designed to connect to the screw remover, enabling use with a hand tool, torque wrench, or ratchet for effective operation.
5- Perfect Guide & PG Hand Driver
The Perfect Guide serves as a guide for the reverse drill and is used when a screw has fractured at the lower part of the female screw within the fixture. It connects to the PG hand driver and is directly applied to the female screw of the fixture.
Designed with safety in mind, the Perfect Guide features an internal stop mechanism that prevents the reverse drill from exceeding a depth of 2mm during use.
6- Conical, Internal, External Guide
These guides are used with the reverse drill when the Perfect Guide cannot be utilized or when the screw is fractured deeper than 2mm into the lower part of the female screw within the fixture.
It is essential to select the guide that is compatible with the specific fixture for effective use.
7- SR Driver Holder
This tool can be easily secured to the fixture by connecting it to the 3.5 double hex section of the Conical, Internal, or External Guide.
Features:
Made of medical-grade German stainless steel.
Passivation procedure performed to prevent rust and improve corrosion resistance.
Non-sterile, reusable and autoclavable.
Form test, boiling test and performance test carried out.
Lifetime warranty against defects in materials and workmanship.
PRODUCT CARE
Surgical Instrument Cleaning Guide: Best Practices for Healthcare Facilities
Maintaining properly cleaned and sterilized surgical instruments is essential for patient safety and infection prevention. A well-structured reprocessing system helps healthcare facilities minimize contamination risks, improve clinical outcomes, and ensure instruments remain safe and effective for repeated use.
Below is a step-by-step guide to effective surgical instrument cleaning and sterilization.
Immediate Cleaning After Use
The cleaning process should begin immediately after a medical procedure. Delays may allow blood, tissue, and bodily fluids to dry onto instruments, making debris harder to remove and increasing the possibility of biofilm formation.
At the point of use, staff should gently wipe instruments with a sterile damp cloth or sponge. Moisture-retaining products such as enzymatic sprays, gels, or foams may be applied to prevent organic material from drying before detailed cleaning begins.
For heavily contaminated devices, soaking in an enzymatic cleaning solution can help loosen stubborn biological residue and simplify the cleaning process.
Safe Handling and Transportation
Used instruments should be transferred safely from procedure rooms to the reprocessing area using sealed, puncture-resistant containers designed to prevent leakage and accidental exposure.
Containers should be clearly identified as biohazardous to reduce contamination risks and ensure safe handling by healthcare personnel.
Thorough Manual Cleaning
Manual cleaning plays a key role in eliminating visible contamination before advanced processing methods are used.
Healthcare staff should clean instruments using soft cleaning brushes, approved detergents, and lint-free cloths. Special attention must be given to difficult-to-clean areas such as hinges, grooves, lumens, locking mechanisms, and joints where debris can accumulate.
After scrubbing, instruments should be rinsed thoroughly with purified water, such as distilled or deionized water, to remove detergent residue.
Advanced Mechanical Cleaning
Mechanical cleaning systems provide an additional level of decontamination by removing microscopic particles that manual cleaning may miss.
Equipment such as ultrasonic cleaners and automated washer-disinfectors use sound vibrations and programmed wash cycles to improve cleaning effectiveness.
To achieve proper results, instruments must be arranged correctly within the equipment to ensure complete exposure during cleaning. Staff should always follow the manufacturer’s usage instructions and routinely inspect equipment to maintain performance standards.
Effective Sterilization Methods
Sterilization is a crucial phase in the instrument reprocessing cycle because it destroys harmful microorganisms, including bacteria, spores, and other infectious contaminants.
Several sterilization options are commonly used in healthcare settings, including:
- Steam sterilization
- Gas-based sterilization using ethylene oxide
- Hydrogen peroxide plasma sterilization
- Dry heat sterilization
The most suitable method should be selected according to the type of instrument and the manufacturer’s recommended guidelines.
Residue Removal Following Sterilization
When gas sterilization methods are used, instruments should be carefully rinsed afterward with purified water to eliminate any chemical residue that could potentially affect patient safety.
Proper post-processing ensures instruments are safe for clinical use.
Proper Drying Procedures
Instruments exposed to steam or gas sterilization should be allowed sufficient time to cool or aerate before drying begins.
Complete drying is essential to preserve instrument quality and prevent moisture-related damage such as rust, corrosion, or staining. Lint-free cloths or compressed air may be used to remove remaining moisture effectively.
Instrument Lubrication
Surgical tools with hinges, joints, or movable parts require periodic lubrication to maintain smooth functionality and reduce wear over time.
Only medical-grade, water-soluble lubricants should be used, and application should always follow manufacturer recommendations to avoid buildup or damage.
Inspection and Functional Assessment
Every instrument should undergo a careful inspection before packaging and storage.
Healthcare staff should evaluate:
- Overall cleanliness
- Structural condition
- Operational performance
- Signs of wear, cracks, chips, or damage
Magnification tools may help detect defects that are not visible to the naked eye. Instruments that fail inspection should be removed and reprocessed or repaired.
Sterile Packaging Requirements
Correct packaging helps preserve sterility until instruments are needed for patient care.
Depending on the device type, facilities may use sterilization pouches, wraps, or rigid containment systems. Packages should be securely sealed to reduce contamination risks and labeled with important details such as sterilization date, contents, and tracking information.
Storage and Shelf Management
Sterile instruments should be stored in a clean, dry, and controlled environment to preserve their integrity.
Proper storage practices include:
- Keeping instruments off the floor
- Avoiding excessive moisture or direct sunlight
- Maintaining controlled room conditions
- Organizing inventory using a first-in, first-out system
This approach helps ensure older sterilized products are used before newly processed items.
Documentation and Quality Compliance
Accurate recordkeeping is an important part of surgical instrument reprocessing and regulatory compliance.
Healthcare facilities should maintain detailed documentation that includes:
- Sterilization dates and cycle information
- Processing methods used
- Equipment performance records
- Staff/operator details
- Biological monitoring and testing results
- Maintenance and validation logs
Organized documentation improves traceability, supports audits, and helps facilities meet healthcare quality standards.
Final Thoughts
A consistent and properly managed cleaning process is essential to maintaining surgical instrument performance and protecting patient safety. From point-of-use cleaning to storage and documentation, every stage contributes to infection control, regulatory compliance, and better healthcare outcomes.
